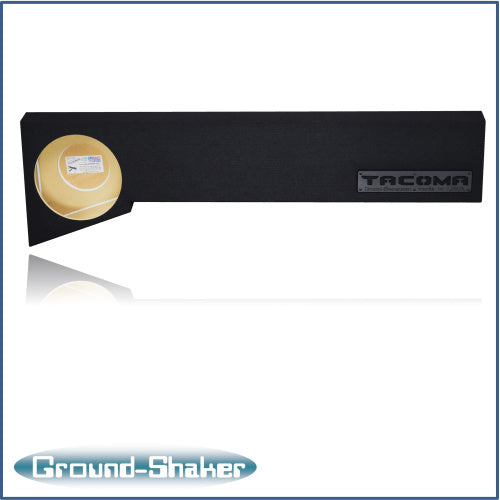

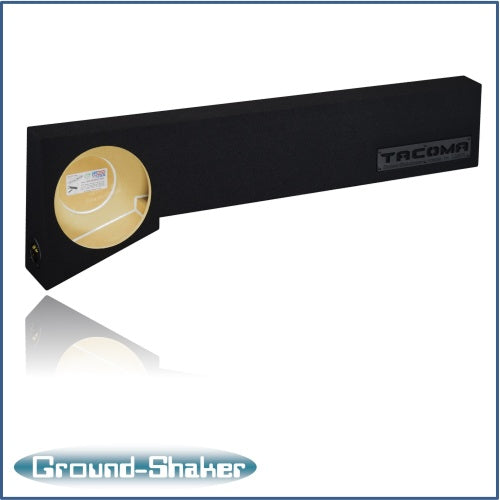

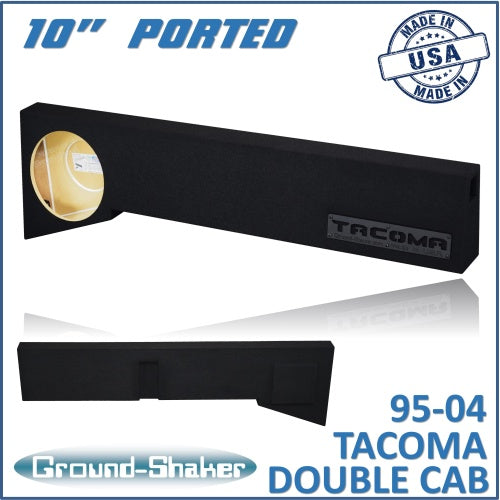

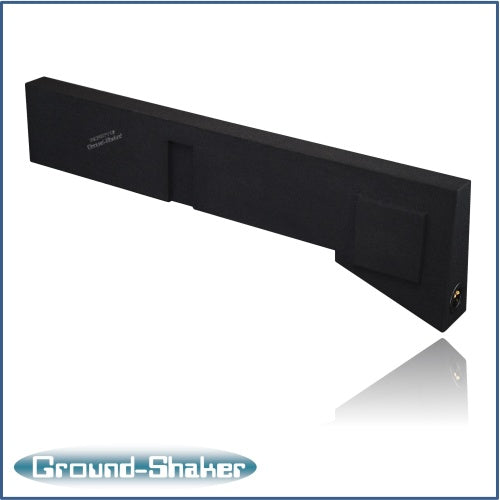

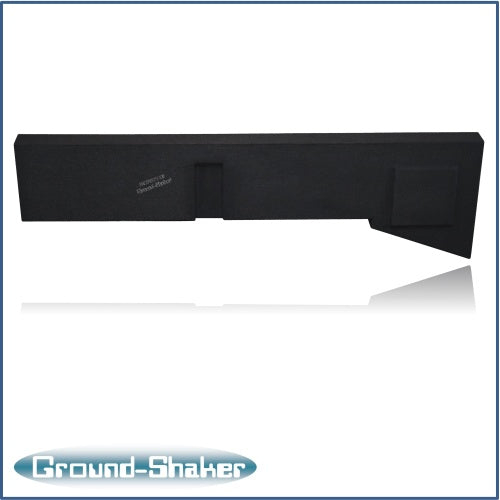

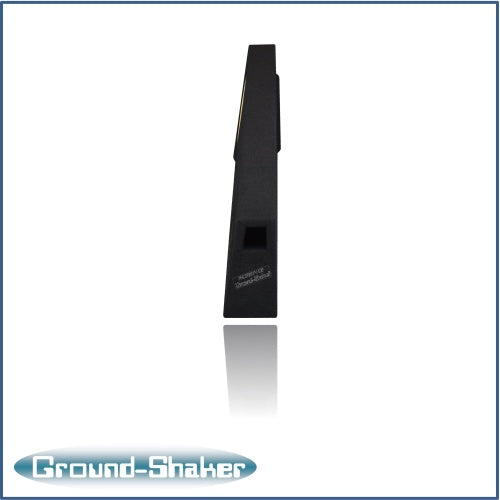

RTOYP110B

SPECIFICATIONS:

-CUTOUT DIAMETER: 9 1/4"

-TOTAL AIR VOLUME: 0.55 FT^3

-TUNING FREQUENCY: 32-Hz

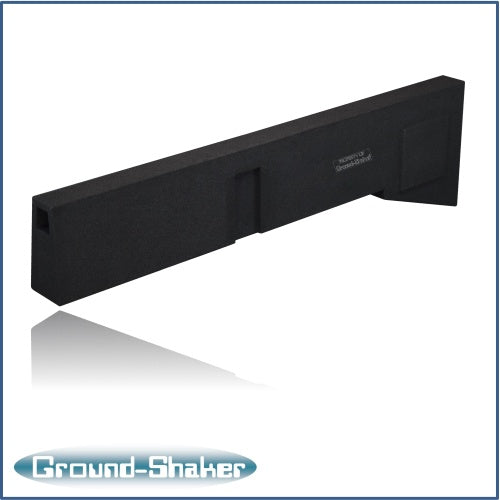

-1 SLOT PORT (DIMENSIONS: H-2” W-2” L-17 1/2”)

-WEIGHT: 19 LBS.

-MOUNTING DEPTH: 3 3/4" (WITH A 5” DIAMETER MAGNET)

DIMENSIONS:

-HEIGHT: 8 3/4”

-LENGTH: 48 1/4"

-TOP DEPTH: 3”

-BOTTOM DEPTH: 4 1/2"

CONSTRUCTION:

-5/8" HIGH DENSITY MDF WOOD

-CARPETED WITH DURABLE TRUNK LINER FINISH

-SEALED WITH HIGH QUALITY TITEBOND SILICONE

-GLUED WITH HIGH QUALITY TITEBOND WOOD GLUE

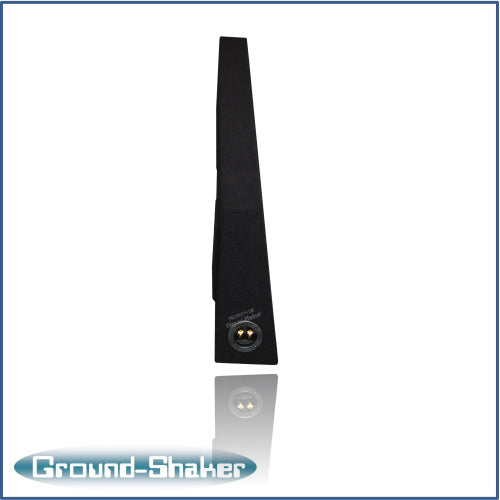

-1 BINDING POST TERMINAL

INSTALLATION:

-FITS BEHIND REAR SEAT

-FORWARD FIRING

-JACK AND BRACKET MUST BE REMOVED

-BRACKET ON REAR WALL MUST BE REMOVED

SUBWOOFERS THAT FIT:

- ROCKFORD FOSGATE - P3S

-AUDIO CONTROL - SPC-10S4 (REMOVE MAGNET BOOT)
